OAuth 2.0 Introduction for AWS Cognito Users

OAuth 2.0 Introduction

OAuth 2.0 is all over the web and you’ve mostly like used it whether you know it or not. If you’ve ever signed up for a website and used the “Login with Google” or “Login with Facebook” option then you’ve already been the “end user” of an OAuth flow.

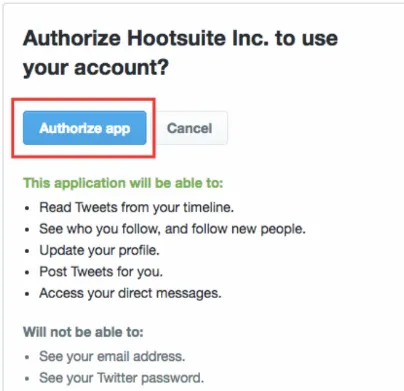

For example, let’s say you have an online business and you want to use a social media marketing app like HootSuite that will post scheduled tweets for you. You will see an option to “Login with Twitter” and then you’ll see something like this:

How does it work, though? You never gave your Twitter password to HootSuite yet the screenshot says HootSuite will be authorized to update your profile and post tweets for you.

In short, OAuth 2.0 has the concept of a central identity provider, which often times is a company like Amazon, Google, GitHub, or Twitter and the authentication is still done with them. First, you authenticate with a password or some other secure credential and after a successful authentication, OAuth is the authorization flow where behind the scenes tokens are exchanged instead of our passwords.

Note

Authentication is proving who you are with some form of credential like a password. Authorization is what you are authorized to do after you prove who you are. You will sometimes see the shorthand AuthN/AuthZ

OAuth 2.0 Roles

resource owner

An entity capable of granting access to a protected resource.

resource server

The server hosting the protected resource and has the capability to accept and respond to requests when the request has an access token for a protected resource

client

The application making protected resource requests e.g. your web/mobile app retrieving information from a database after a user clicks their inbox. A client can be different devices like phone, laptop or even another server.

authorization server

the server that issues the access tokens to the client after a successful authentication.

Since we know that OAuth 2.0 is a standard anyone can implement, we can now look at how AWS implements this standard by having Cognito be the authentication server that issues tokens and Cognito is also the resource server because Cognito User Pools store user data in a directory. Your application is the client that sends a request and if successfully authenticated will be given different types of JWT tokens (access, ID, refresh tokens) that can now be presented as credentials to exchange for access to protected resources like a database.

Grant Type

This is a term that describes how we are going to grant access tokens to an application(e.g. your web app) after successful user authentication. You can change these settings in your User Pool’s app client and there are three choices: authorization code grant, implicit grant, client credentials grant.

client credentials grant's name can be confusing at first glance, but it is for machine-to-machine access and you cannot enable this in a User Pool app client where authorization or implicit grants are enabled. We won’t talk about client_credentials much in this article but it’s probably the simplest form of OAuth 2.0 implementation. Generally speaking if you want to grant access to a machine, and not a specific user, client_credentials grants might be what you want.

Authorization and Implicit grants start by making a request to the Authorization endpoint /oauth2/authorize

Authorization Code Grant

This is the AWS recommended grant for public clients. When the client sends a request to /oauth2/authorize and is successfully authenticated, the authorization server responds with a code that your application can send to the AWS Token Endpoint and exchange the code for access tokens. If your client is a web application that is using server side components, this is a good choice.

A request for an Authorization code grant with PKCE looks like this:

GET https://mydomain.auth.us-east-1.amazoncognito.com/oauth2/authorize?response_type=code& client_id=`1example23456789`& redirect_uri=`https://www.example.com`& state=`abcdefg`& scope=aws.cognito.signin.user.admin& code_challenge_method=S256& code_challenge=`a1b2c3d4...`

In the URL parameters, response_type=code is what makes this an Authorization code grant request. If your username and password authenticates, the authentication server responds with a redirect back to your application and there will be a code in the URL parameters like this:

HTTP/1.1 302 Found
Location: https://`www.yourdomain.com`?code=a1b2c3d4-5678-90ab-cdef-EXAMPLE33311&state=`abcdefg`

Now your app takes this code and sends one more request, but this time to the Token Endpoint /oauth2/token and if the code is valid the endpoint issues the access tokens, id tokens, refresh tokens. This code is temporary

PKCE

Proof Key for Code Exchange(PKCE) is an extension for Authorization Code grants designed to prevent CSRF and authorization code injection attacks. They are currently considered best practice for SPA and mobile apps. If you want to use PKCE with the Authorization Code grant, AWS Docs detail how your application can dynamically generate a unique string for the code challenge.

Implicit Grant

Implicit grants will also give you the access and id tokens but not the refresh tokens. It’s no longer considered best practice but years ago this was the recommended pattern for SPA and mobile apps. Implicit grants don’t have to make that additional request to the Token Endpoint like Authorization Code grants. Implicit grants are considered legacy grants now. Instead of having response_type=code, your URL parameters would have response_type=token

Single Page Applications

Single Page Applications are also called browser based apps because ultimately the application’s source code is loaded in the browser and runs from there. This means SPAs have no ability at all to maintain client secrets in the same way an application running on a server does. On the surface, SPAs look like any other site to your users but under the hood they function entirely different.

Over the last few years we’ve seen popular SPA libraries like React begin to incorporate server side components. For SPAs you would want to look into Authorization Code Grant flows with PKCE and use one of the client side flows mentioned below:

Authentication Flows

1. ALLOW_ADMIN_USER_PASSWORD_AUTH

Intended for server side authentication flow. Not intended for public client authentication. This flow uses AdminInitiateAuth and requires IAM Credentials for cognito-idp:AdminInitiateAuth and cognito-idp:AdminRespondToAuthChallenge

2. ALLOW_USER_PASSWORD_AUTH

Intended for client side authentication flow. When you want to use this, in your app client settings DO NOT generate a client secret.

3. ALLOW_USER_SRP_AUTH

Intended for client side authentication flow. Similar to ALLOW_USER_PASSWORD_AUTH except it uses the SRP PROTOCOL to verify the password. If you don’t want to setup the SRP flow yourself you can import only the auth parts of the AWS Amplify library to your client side code and it has SRP compatibility out of the box.

4 ALLOW_CUSTOM_AUTH

This is for creating your own challenge/response based authentication using AWS Lambda.
